Product Detail

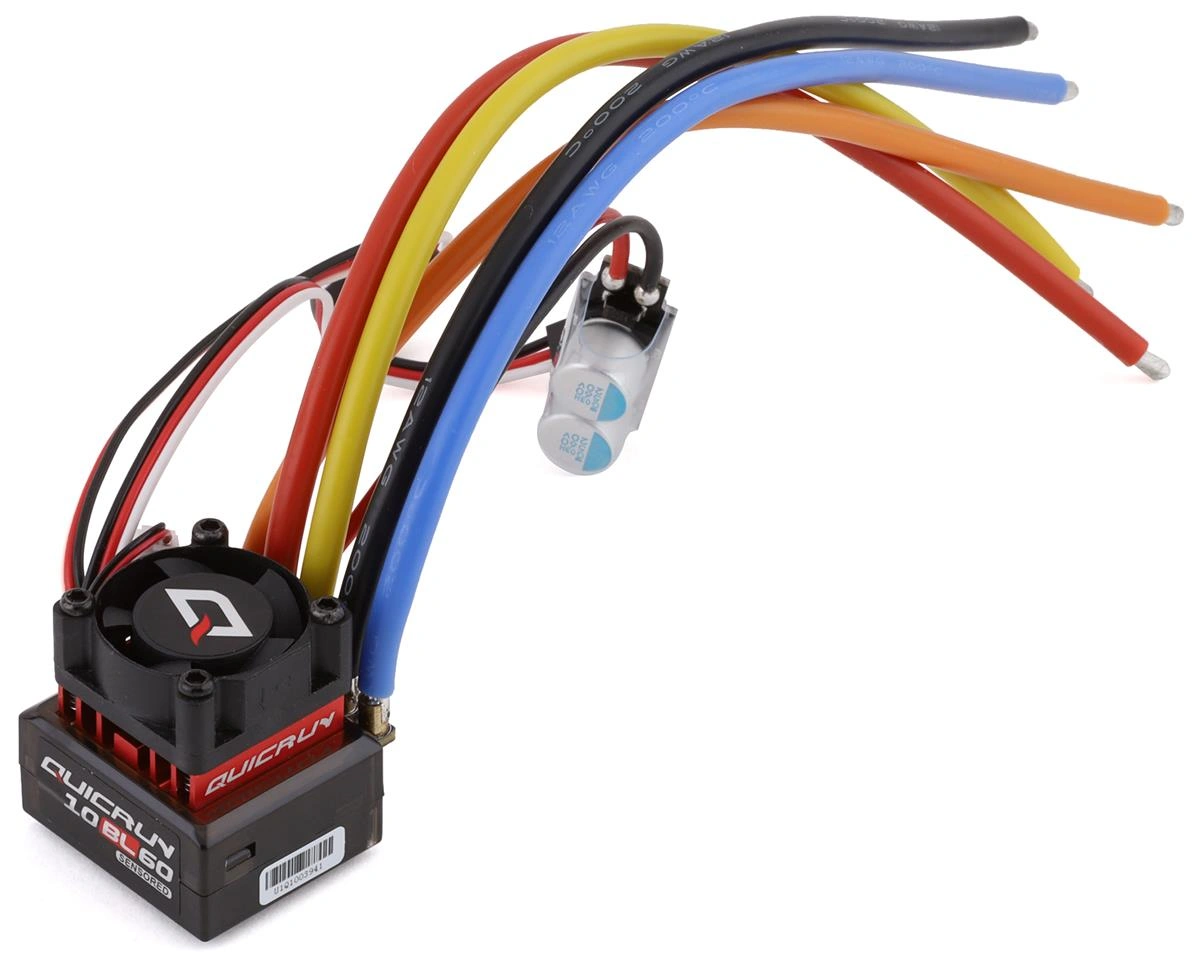

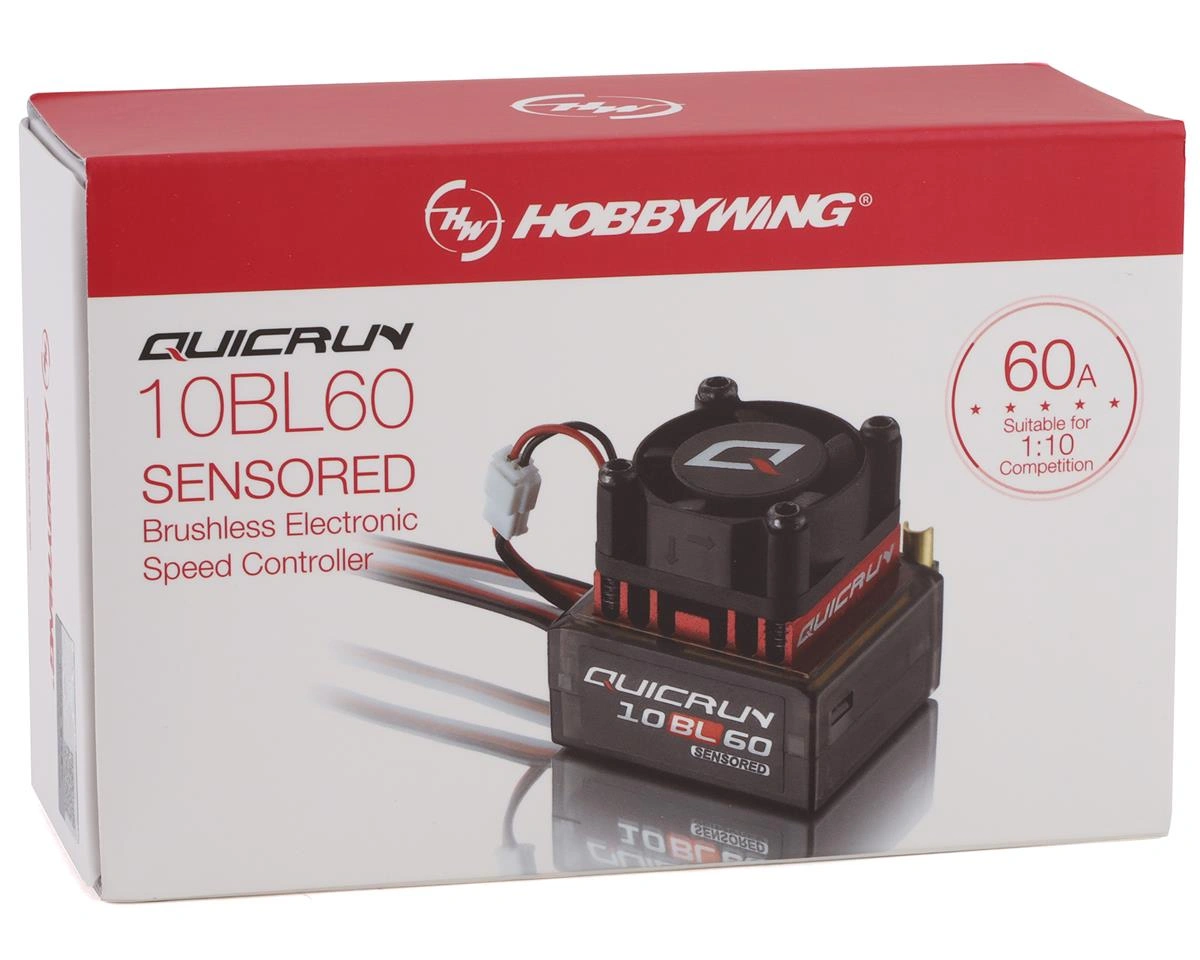

Get ready to race with the HobbyWing QuicRun 10BL60 Sensored Brushless ESC! This high performance but affordable ESC features a compact size and automatic identification system for sensored/sensorless motors. With excellent operation and various adjustment options, it's perfect for any competition. Plus, its 8-step timing adjustment and proportional braking make it a powerful addition to any car, tire, or track. Make your ride stand out with the QuicRun 10BL60!

• High performance but low price- users can own this reliable race-ready ESC at an affordable cost.
• Compact size, suitable for various car chassis.
• Auto identification system can recognize sensored or sensorless brushless motors automatically.
• Smooth operation and plentiful adjustment options. Suitable for most kinds of competitions.
• 8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential.
• Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
• 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit various of cars, tires and tracks.
• Multiple protections: Low voltage cut-off protection for LiPo or NiMH battery / Over-heating protection / Throttle signal loss protection / Motor Lock-up protection.
• One-button sets the ESC. Easily reset all parameters to factory default settings.
• Compatible with optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

• Applications: 1/10 & 1/12 On-road / Off-road / F1 / Drift car race / Street race for fun / Club racing / STOCK race with 0 timing / Drift car race
• Cont./Peak Current/Resistance: 60A/380A/0.0008?
• Motor Type Supported: Sensored / Sensorless Brushless Motor
• Car Applicable: 1:10 On-road/Off-road/Buggy/Monster
• Motor Limit:
• 2S LiPo or 4-6 cell NiMH: ?8.5T(1/10 On-road), ?13.5T(1/10 Off-road)*
• 3S LiPo or 8-9 cell NiMH: ?13.5T(1/10 On-road), ?17.5T(1/10 Off-road)*
• Battery: 4-9 cell NiMH, 2-3S LiPo
• BEC Output: 6V/2A (Linear Mode)
• Size: 33mm(L)*28mm(W)*31.5mm(H, with cooling fan)
• Weight: 59g (with wires, without cooling Fan)
• External Program Port: Available
