Hobbywing EZRun MAX5 G2: Unleash the Power of Your 1/5 Scale RC Car!

“Unleash your inner radiance with the Aura Bloom – a luxurious elixir crafted to awaken your skin’s natural luminosity. Infused with rare Amazonian botanicals and a touch of shimmering stardust, this serum melts into your skin, delivering intense hydration and a subtle, captivating glow. Feel the transformation begin.”

$140.00 $279.99

num:

description

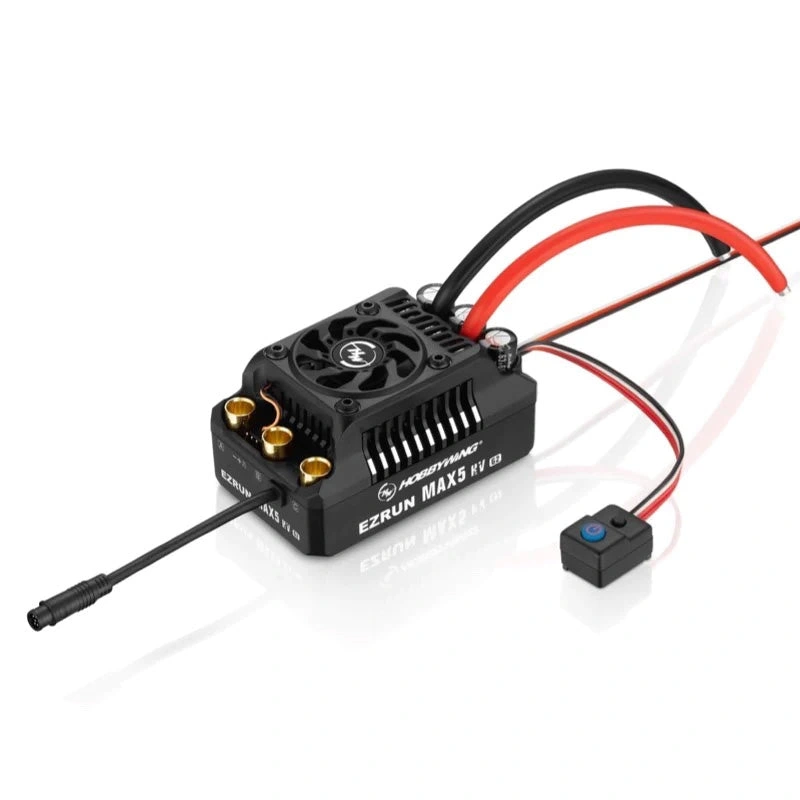

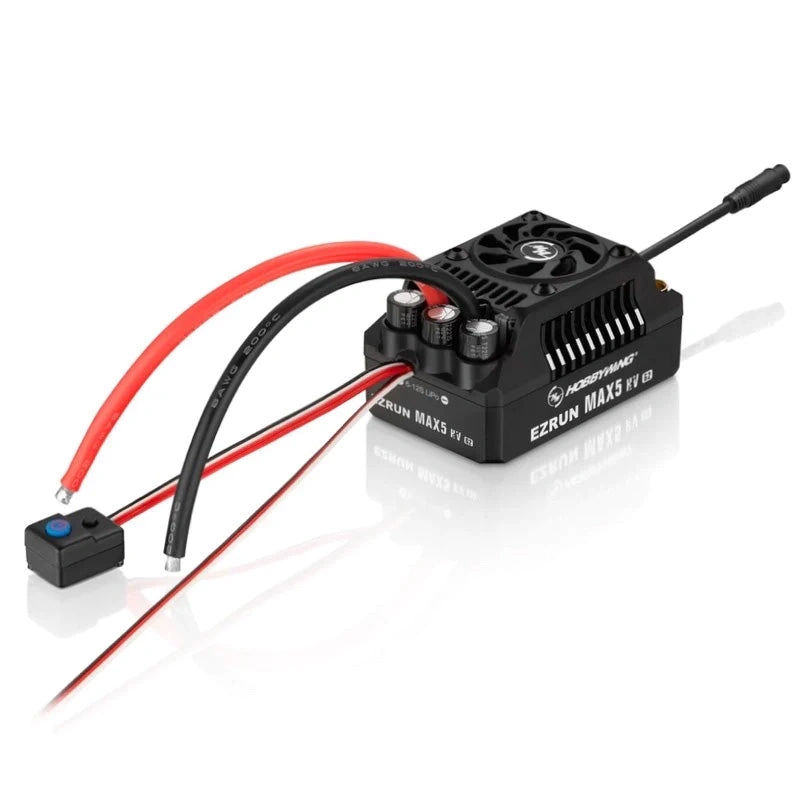

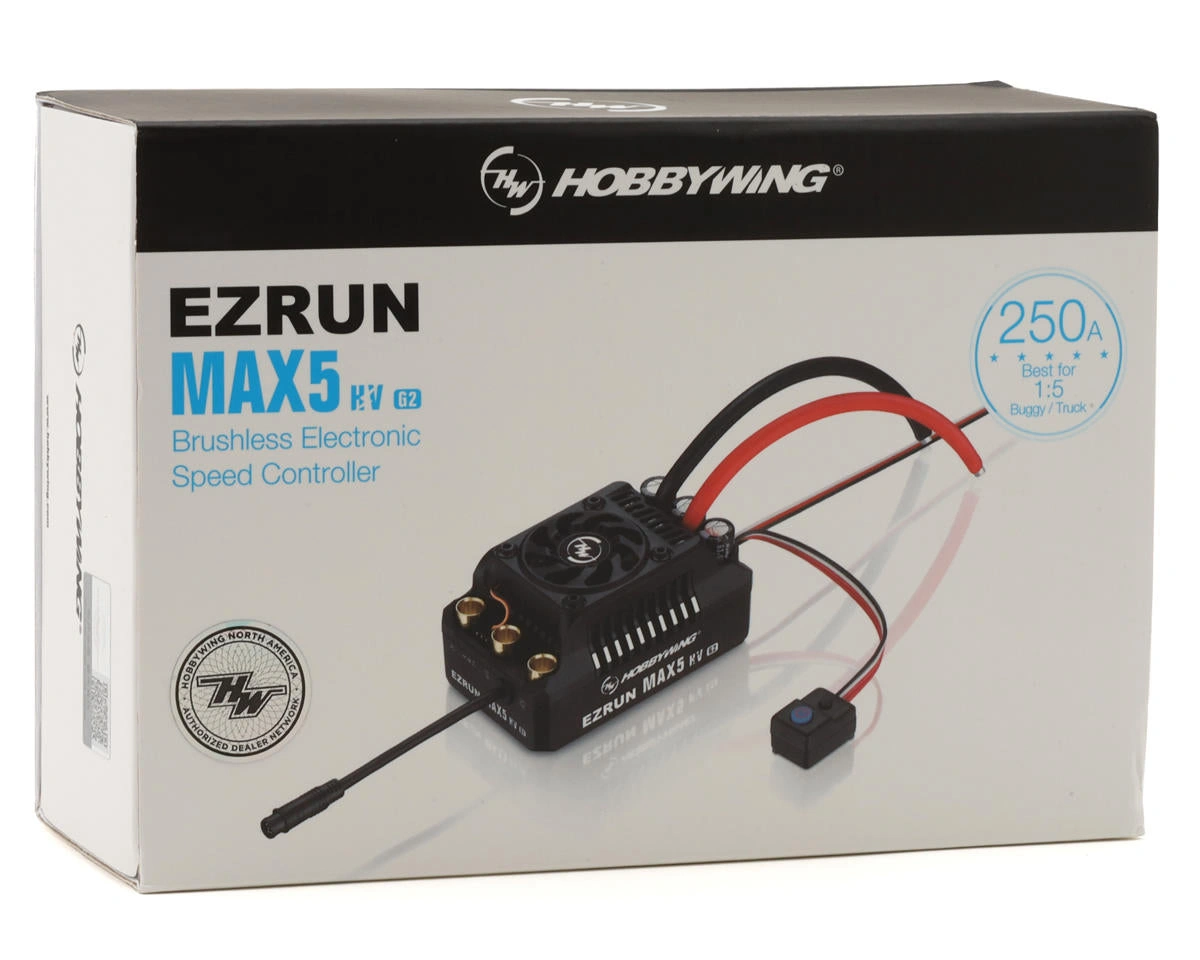

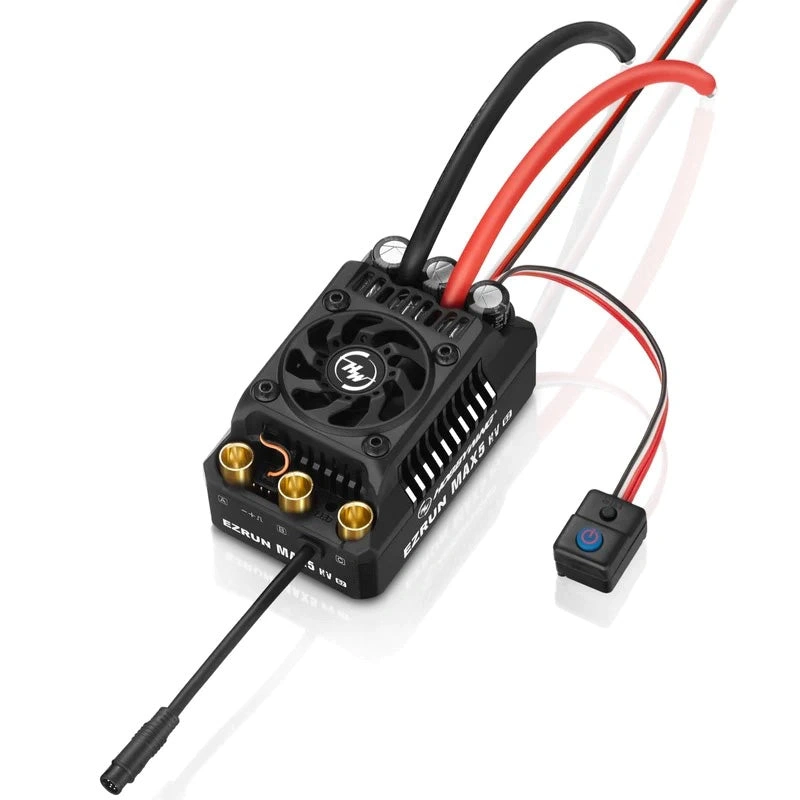

EZRUN MAX5 G2 ESC

Hobbwing presents the next generation MAX5 ESC. The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency. At the same time, operating temperature is drastically lowered to improve overall stability and reliability of the ESC. The IP-67 waterproof rating guarantees excellent waterproofing and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow, and water without damaging the power unit. Compared with the previous generation (MAX5 ESC), the total capacity of the capacitor has increased by 45% (1260uF). The super large capacity ensures that 5th scale models do not need external capacitors. In addition, the built-in capacitor thermal protection function of the ESC is always in a safe operating state. Connect the ESC to the OTA Bluetooth module, and through the mobile phone APP, you are able to view real-time data and operating status such as; throttle, voltage, current, temperature, speed, etc. The new sensor wire interface enhances the ESC protection level and solves waterproof problems faced by traditional interfaces.

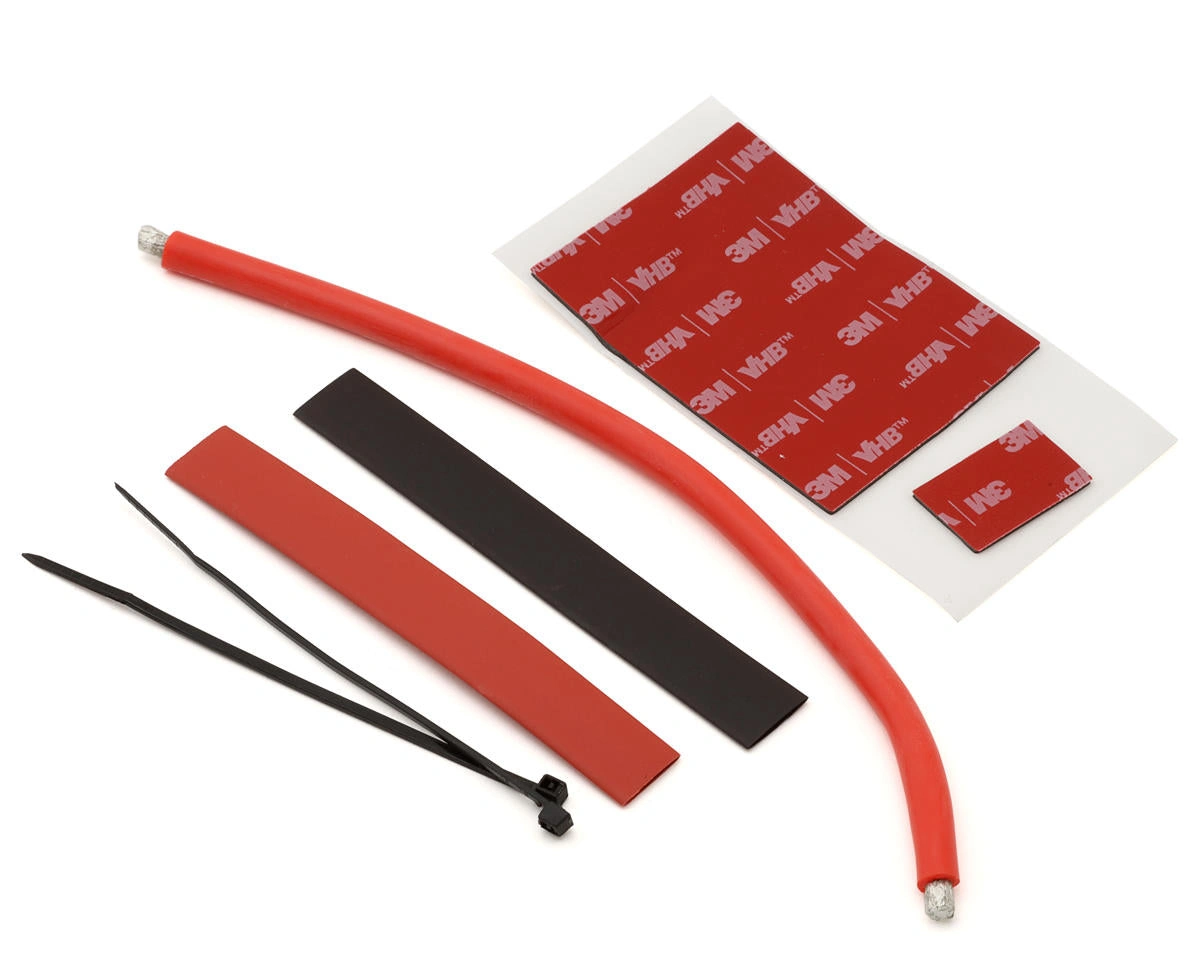

Includes:

(1) Ezrun MAX5 G2 ESC
(3) 10 AWG, 200C Black wires for a brushless motor
(1) Extra set of 8 AWG 200C RED power wire
(1) Extra set of 10 AWG 200C Black power wire
(1) Double side tape
(2) Heat shrink tube
User's manual
A HOBBYWING decal

Features:

The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Supports turbo timing setting, the timing response is remarkable when used with the matching motor(such as EZRUN 56118SD G2 Sensored brushless motor).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
Supports LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module.
Supports the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions

Specifications:
